7M Sensor locations

Spudboy · 08-24-2007, 11:45 PM

ADMIN EDIT: This is the USDM oil pressure sender, connector and boot.

What is this (shinny silver) 1st picture? Drivers right, lower front of block.

When I was disconnecting wires this plastic grey cap came off the "What is this" very easy. The wire and it's connector underneath doesn't make sense to me as to how or where it connects.

Bill UK · 08-25-2007, 06:34 PM

cre · 03-11-2012, 03:13 AM

The coolant level sensor is in the coolant reservoir. It is located on the bottom and uses a float inside to determine the coolant level. You may get a false reading if this float is sticking on built up crud (from you BHG

). Sorry, I have no pictures at this time.

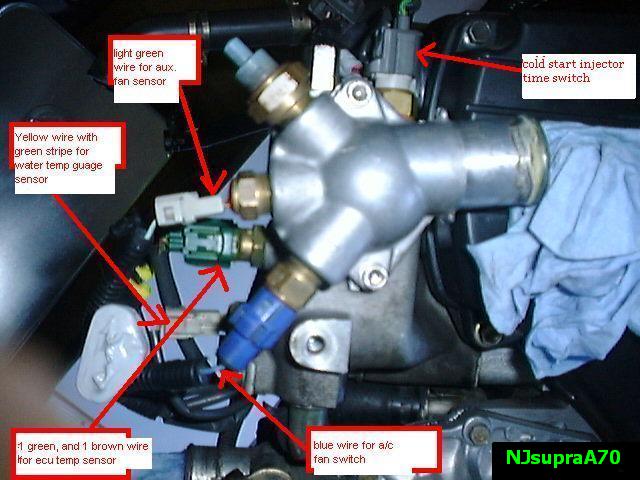

Another of the thermostat housing. This one shows the Cold Start Time Switch.

08-24-2007, 11:45 PM	#1
Spudboy 3" Exhaust Join Date: May 2006 Location: So. Cal Mountains Posts: 178	7M Sensor locations ADMIN EDIT: This is the USDM oil pressure sender, connector and boot. What is this (shinny silver) 1st picture? Drivers right, lower front of block. When I was disconnecting wires this plastic grey cap came off the "What is this" very easy. The wire and it's connector underneath doesn't make sense to me as to how or where it connects. Last edited by cre; 03-11-2012 at 03:08 AM.

08-25-2007, 06:34 PM	#2
Bill UK AEM EMS Join Date: Jul 2006 Location: UK Posts: 891	Last edited by cre; 03-11-2012 at 03:06 AM. Reason: Added to sensor location FAQ, removed unrelated dialog.

03-11-2012, 03:13 AM	#3
cre Toyota Racing Development Join Date: Apr 2007 Posts: 5,038	The coolant level sensor is in the coolant reservoir. It is located on the bottom and uses a float inside to determine the coolant level. You may get a false reading if this float is sticking on built up crud (from you BHG ). Sorry, I have no pictures at this time. Another of the thermostat housing. This one shows the Cold Start Time Switch. Last edited by cre; 03-11-2012 at 03:52 AM.
