11-25-2007, 11:22 PM
|
#1 |
|
Intake
Join Date: Jul 2007
Location: Washington
Posts: 35
 |
pics of ignition control module.
I have a 77 Celica I'm putting a 7-mge. My wiring harness has 6 cut wires It is by where the Ignition and coil is. I don't have the ignition yet thinking of getting a MSD 6A. Can someone take a pic of theirs for me so I can see where the wires go to.
Thanks Ryan |
|
|
|
11-30-2007, 01:29 AM
|
#2 |
|
Intake
Join Date: Jul 2007
Location: Washington
Posts: 35
|
Anyone have a camera?
|
|
|
|
|
11-30-2007, 06:06 AM
|
#3 |
|
7M POWAH! ;)
Join Date: Jun 2004
Location: New Zealand
Posts: 2,312
|
can you take a pic of what wires are cut as some are similar to gte (only what i have available to take pics of) otherwise there is the tsrm which has the electrical wiring side
Cygnus X1 - Supra and click on tewd
__________________
Please use the forum to ask your questions as they will get replied to much faster than pming me  Pics of my build. "Good girls are just bad girls that don't get caught" Do a diagnostic first! |
|
|
|
|
12-03-2007, 01:10 AM
|
#4 |
|
Intake
Join Date: Jul 2007
Location: Washington
Posts: 35
|
I tried to upload a pic it said it was too big. I'll try to get it on as soon as I can.
Thank you Ryan |
|
|
|
|
12-04-2007, 02:51 AM
|
#5 |
|
Intake
Join Date: Jul 2007
Location: Washington
Posts: 35
|

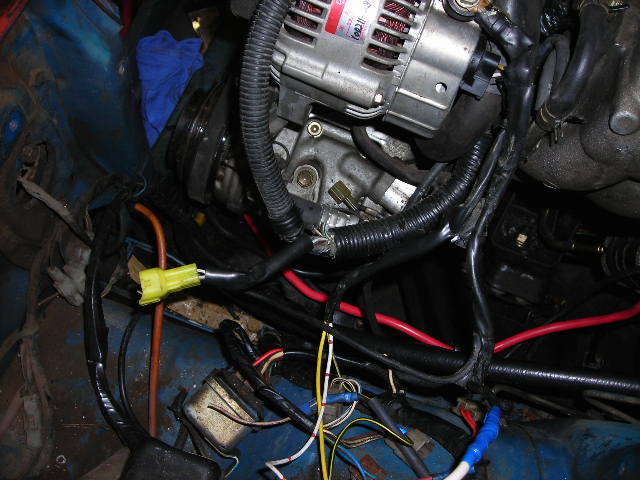

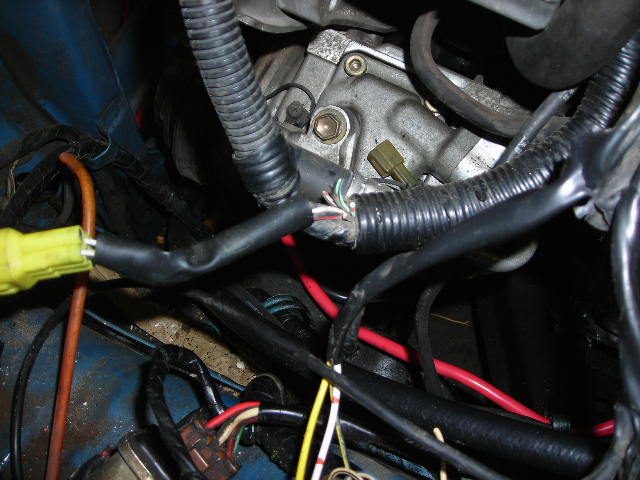

Here are the pics.
|
|
|
|
|
12-04-2007, 06:27 AM
|
#6 |
|
7M POWAH! ;)
Join Date: Jun 2004
Location: New Zealand
Posts: 2,312
|
not sure what year yours is but here is pre 89 (yellow plug) setup
Let me know if you want me to write down the colours as well ignitor side  engine loom side  engine loom side  Noise suppressor  Other end of noise suppressor  Fusebox engine loom side (same colour both sides) Powers up the fusebox
__________________
Please use the forum to ask your questions as they will get replied to much faster than pming me Pics of my build. "Good girls are just bad girls that don't get caught" Do a diagnostic first! |
|
|
|
|
12-11-2007, 11:35 PM
|
#7 |
|
Intake
Join Date: May 2007
Location: barnhart,MO
Posts: 32
|
fouling 4 of 6 plugs
do you know the dia. for the noise suppressor
|
|
|
|
 |
|
|
