Need a bit of help with some stuff

[Kevin]

So im putting everything back together.. and i dont know where a few of these things go.. i shoulda labelled and stuff but it was like 3 of us tearing the car apart so its hard to keep track where everything went.
here are the pics. any help would be great


sorry if the pics r bad.. i only had my phone with me

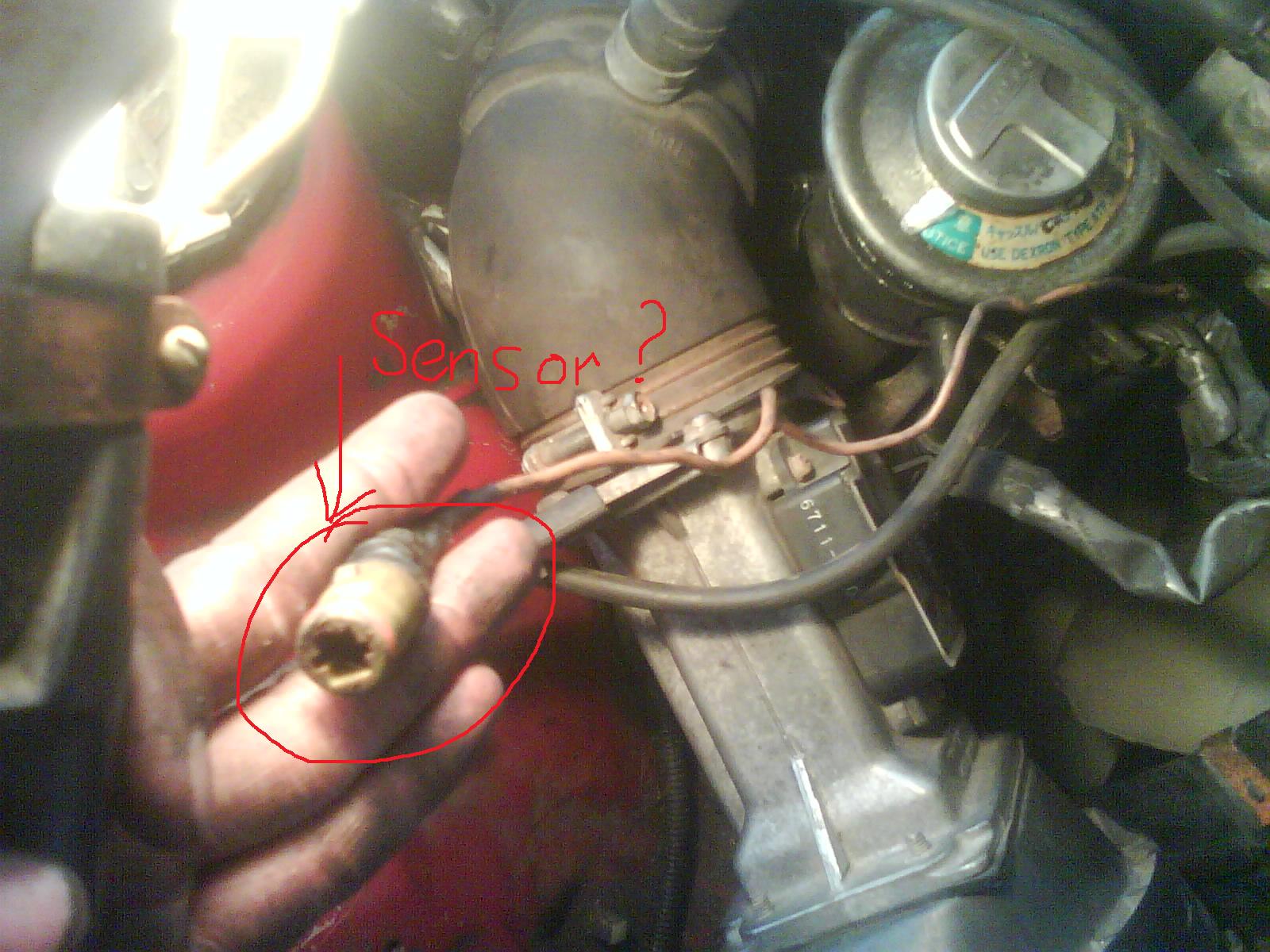

this wire broke so im not even sure if it was supposed to be here cuz i had one more sensor wire that broke.. on the other side


there was 2 green sensor plugs on this side. the other one i hooked up to the sensor on the block near the front of the block under the lower intake. that wire i broke too...im not sure if its this one or not. it doesnt look like it would reach to near the front though

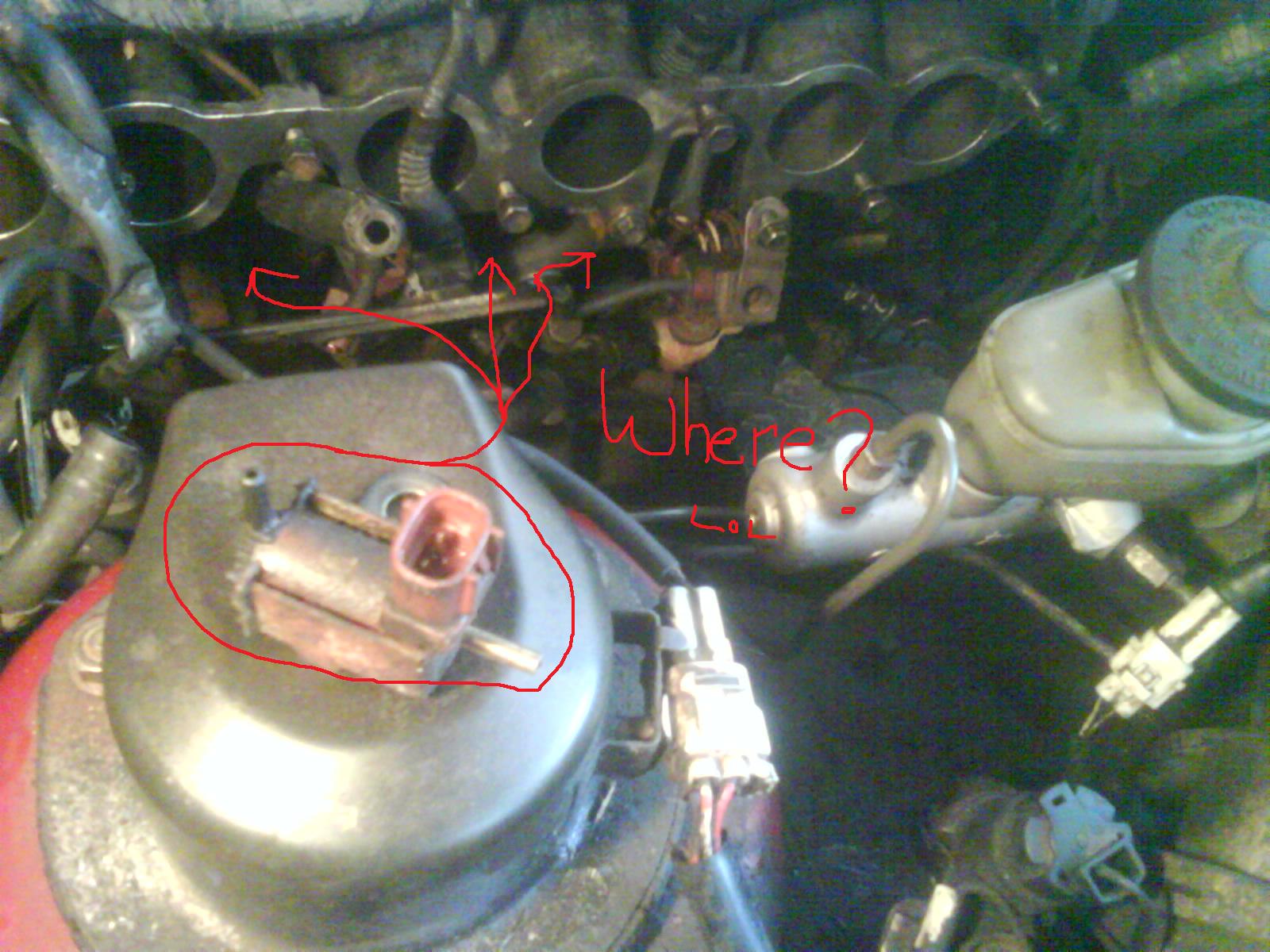

this thing.. there was 2 of them.. i know where the other one goes but not this one..

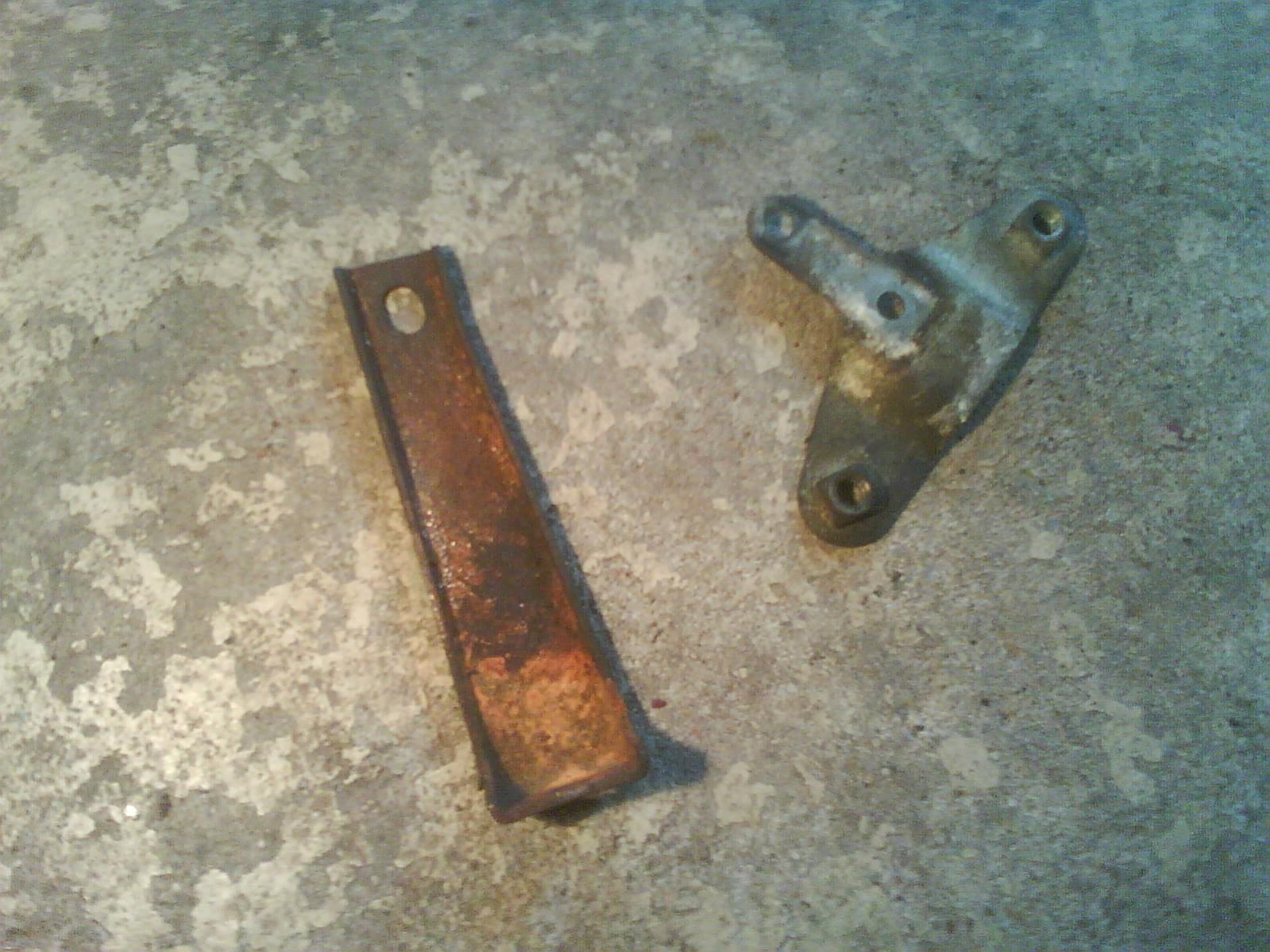

and finally these things.. dont know where they go



Thanks

btw i tried looking at the wiring diagram on the tsrm online.. its real unclear and gives me a headache when i look at it..

[mirage83]

Okay, from the top...

First pic I'm not certain, think it's one of the sensors on the Tstat housing.

Second pic, green plug (there's two of them on turbo models) goes to a knock sensor. One ks is under the front edge of the starter, the other near the front of the block under the intake.

Third pic, that's one of your two VSV's that hook up to the vacuum system under the intake plenum. Here's a link showing them and the vacuum lines...

http://www.cygnusx1.net/Supra/Librar...spx?F=1708&P=5

Parts # 17650 and 25860

Fourth pic, the object on the right side of the pic is the bracket that your 3000 pipe mounts to and which is mounted to your valve covers. Not sure about the bracket on the left of your picture.

[Kevin]

thanks.. i'll check it out tomorrow. for the first pic.. i looked all over though.. even the t-stat housing.. i couldnt find any sensor? i think i already plugged something on there?

as for the other green connectors and vac lines .. thanks so much.

and the bracket thing.. maybe someone else knows where it came from?
(this is what happens when u try to get help to speed up the process LOL)

[Kevin]

ok i checked today the first picture doesnt go on the thermostat housing. i already have 2 connectors going to there. are there any other sensors on this side of the engine?

second picture green sensor plug.. i think i found where it goes.. but it wont plug in. there's 2 knock sensors right? one near the front of the block and one just infront and above the starter? if it is the one right where the starter is.... i think it's broken? the plug is supposed to look similar to the one in the first picture just attatched to the block instead. is it ok to run without hooking it up?

[Bill UK]

Originally Posted by mirage83

Fourth pic, the object on the right side of the pic is the bracket that your 3000 pipe mounts to and which is mounted to your valve covers. Not sure about the bracket on the left of your picture.

(Left bracket in pic) Top turbo stay, one end bolts to the head and the other end to the turbo.

[Kevin]

ok thanks. now i am just stuck on the one green plug and the one in the first picture

[Kevin]

so i got it to idle. i set the timing to 10*btdc. i took the jumper out and check and it advanced to about 12*.. so i take the car out.. i drive.. it wont go past about 3000 rpm.. it doesnt seem like any limiter .. it feels like i just wont go past it. sorry for the vague description..

this is a vid of it idling http://www.youtube.com/watch?v=GR0EJ2HmxHA

btw i cant find this connector??

(the white connector)


also... my temp gauge doesnt work anymore??? it doesnt even budge..
also.. my oil pressure gauge is shot up to MAX do you think it's broken?



and im still stuck on the first and second picture

[Kevin]

nothing? i think i read someone else having the same prob before.. i cant find it though.. the search doesnt incude any of my words because they are too short.
