7MGE Engine rebuild

[oregonjoe]

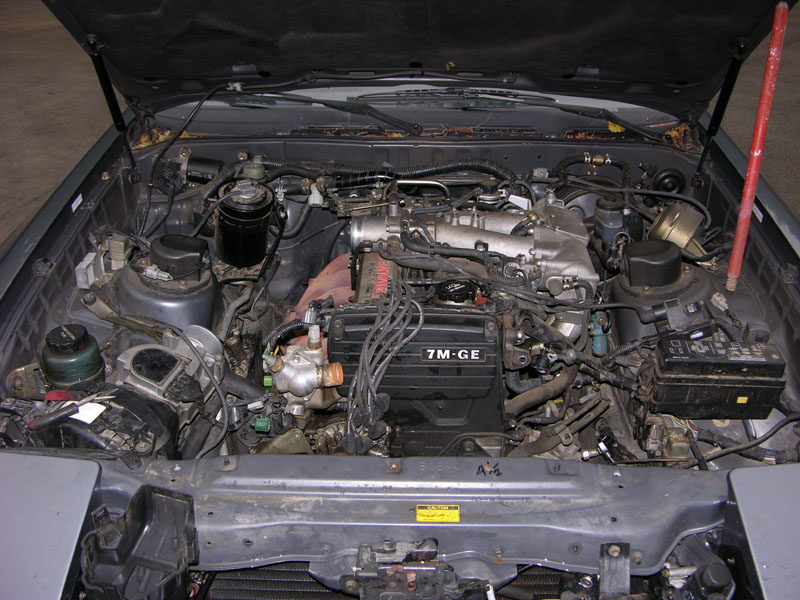

So it finally happened, after almost 20 years my 1990 Supra blew its head – just as forecasted. My wife has been driving the car lately and tells me it has been using water at a gallon a week for the past few months. Past few months?? I reply, it should never need water I inform her. So I go out to look under the hood and old coolant is everywhere. Start the engine and water explodes out the radiator like a volcano. Turn the car off and sounds of steam from within the block.

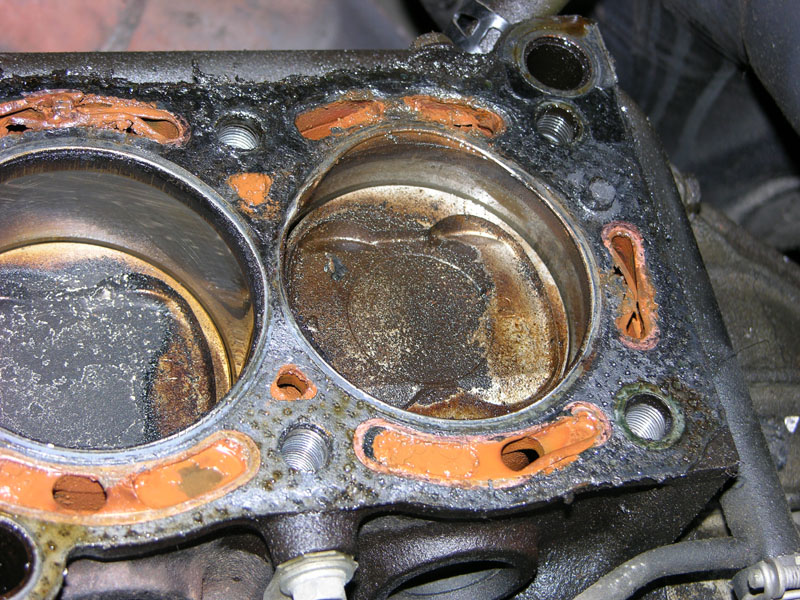

Yup – just like most Supra owners, signs of a blown head gasket. Pull the spark plug on the No. 6 cylinder and it’s the same color as the coolant confirming my suspicion.

Now, I’ve been reading the Toyota forums because I’ve just replaced the timing components on my 94 4Runner and they were a great help. I even started a rebuild on another 4Runner when this happens. After discovering the Supra forum I figure I could lend my experiences here and perhaps get some guidance.

I have rebuilt several engines, mostly Chevy blocks. Since this car is 20 years old, I’ve decided to do a full rebuild from the ground (oil pan) up. I am going to pull the engine and try to document my adventure here with as many pics as possible as I have found them very useful an all the other forums. I have garage to work in and some fiends with lifters and tools so I can take my time.

Of course always willing to take advise as well as give some. Stay tuned.

[Kevin]

go turbo

[oregonjoe]

Fast forward on progress to where I am at now.

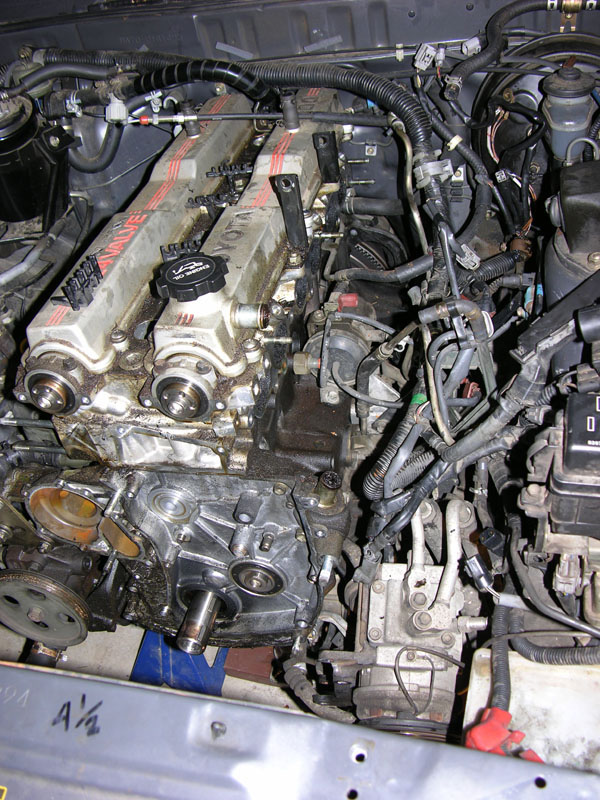

From my experiences with the 4Runners, I started by removing the radiator and fans. This gives me better access from the start.

Then removed the air ducts and water hoses to the timing cover.

Next the throttle body and top part of the air intake. My wife is helping by labeling plastic bags as we go for all the bolts and small parts. She started with a PINK marker because she thought it would look nice but had to switch to dark green when we could not see it on the bag.

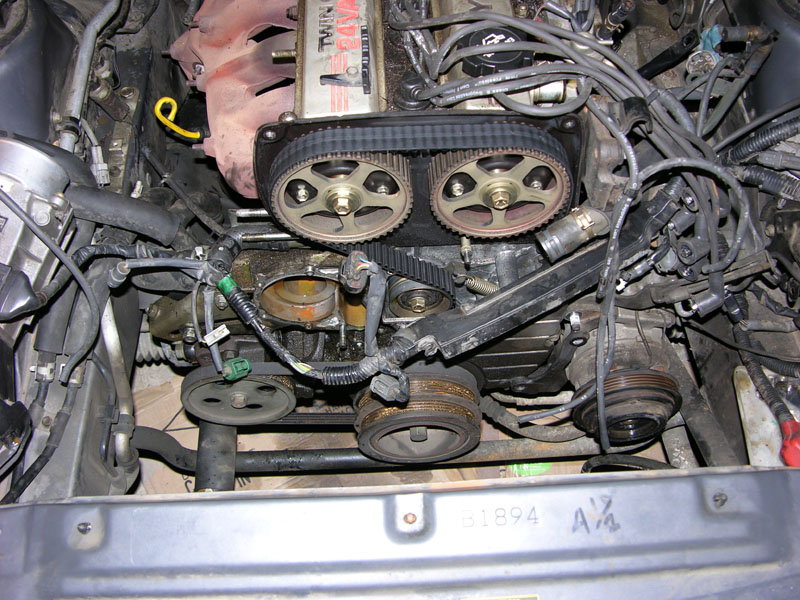

The top part of the timing cover comes off and the belt looks a little worn but not bad for 20 years. It will get replaced along with the idler

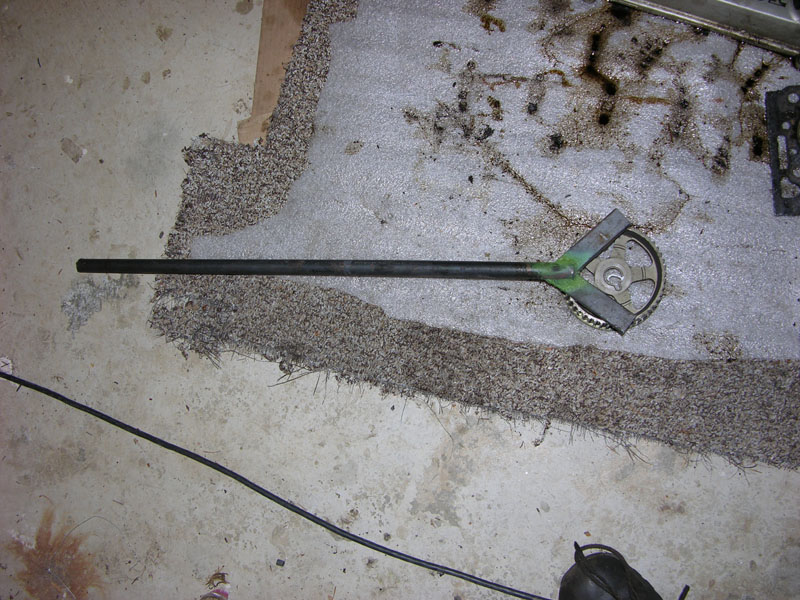

When I did the first 4Runner, I had a heck of a time getting the cam sprockets off. I actually broke one trying to wedge a socket in the sprocket. Had to get a replacement pair from the junk yard for $70 (lesson learned). Why did Toyota not put some holes behind the sprockets to insert some stopping bolts I will never know. Finally had a friend weld up this special tool to hold the sprockets still so I could turn the bolt. Took me 4 days on the 4Runner to get them off with out the tool. Also work great for holding the crank while I go the damper off.

Anyway on to the Supra. The same tool worked great again on the sprockets but could not be used on the damper like the 4Runner. Just no spines to grab on. Luckily I had read through the forums a used the pry bar in the flywheel technique. Only problem was removing the starter which is a real pain. So I had to finish removing the air intake manifolds to get to the top of the starter. Problem here is that Toyota runs the fuel lines through the intake runners making it impossible to remove without having dismantle everything on the drivers side.

So in summary – to take off the damper you need to stick a pry bar in the flywheel

To get to the flywheel you need to pull the starter.

To pull the starter you need to pull the intake manifolds.

To pull the intake manifolds you need to remove everything else.

A day latter I can stick a pry bar in the teeth and pray not to break one. Damper finally comes off and I can finish with timing belt removal.

As a side note. I have since learned that there is a way to actually use the starter to turn the engine to get the damper bolt loose. Will have to try this next time. But remember to remove the fuel pump fuse first. I had to reconnect the battery to raise the windows and forgot to remove the fuse only to see a mini spout of fuel as the windows went up.

[oregonjoe]

Now I can finally get to the valve covers and head bolts. Sent wife down to parts store to get the special HEX socket to remove head bolts. Yes – it does need to be 3/8” to fit into the recess and past the CAM shafts. I decided to leave the cams in place and not remove them from the head so the machine shop can have the whole assembly to look it. No bearings on the CAMS so wanted them to check tolerances when doing the valves.

Head came off easy after following the correct loosing sequence. Put all the bolts in postal flat rate box with holes punched so I would not mix them up. But have since realized that was unnecessary since I was going to need new bolts anyway.

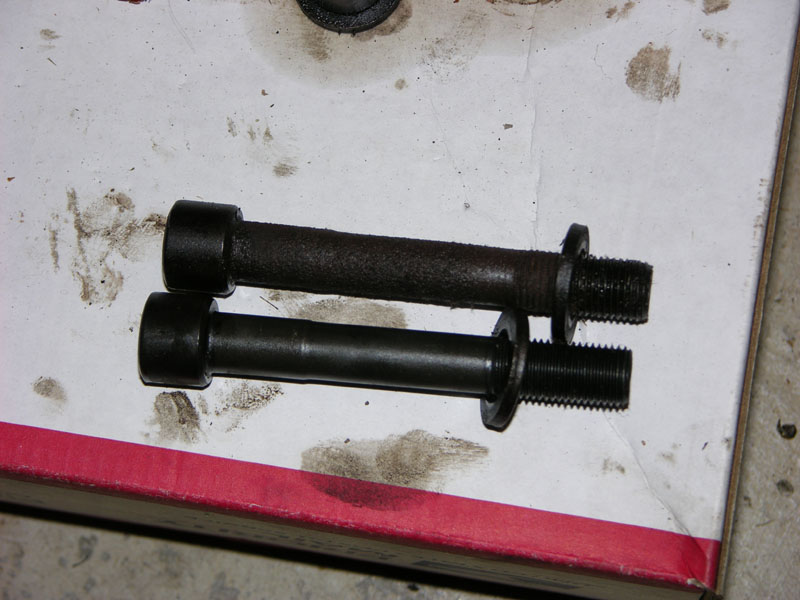

On that topic, as I was removing the bolts most were tight but number 5 came undone almost without any torque. Mighty suspicious ! The number 2 bolt came out hard and when I looked at it - was not clean and dry like all the rest but showed signs of corrosion.

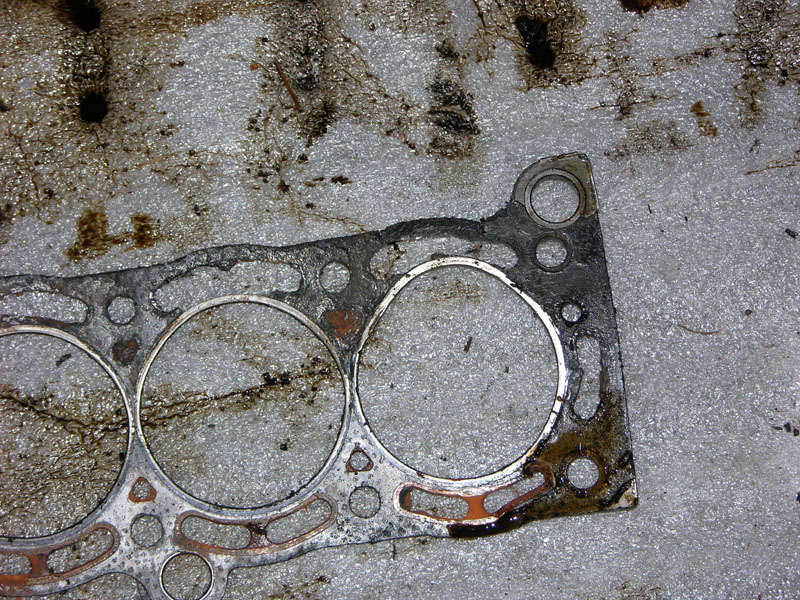

After removing head noticed coolant in the number 2 head bolt hole – not good. After cleaning the hole further looks like a crack in the threads of the hole to the water jacket. Going to have to remove engine and take block to machine shop to have it checked. I am thinking of going to studs and sealant in the bolt hole may work.

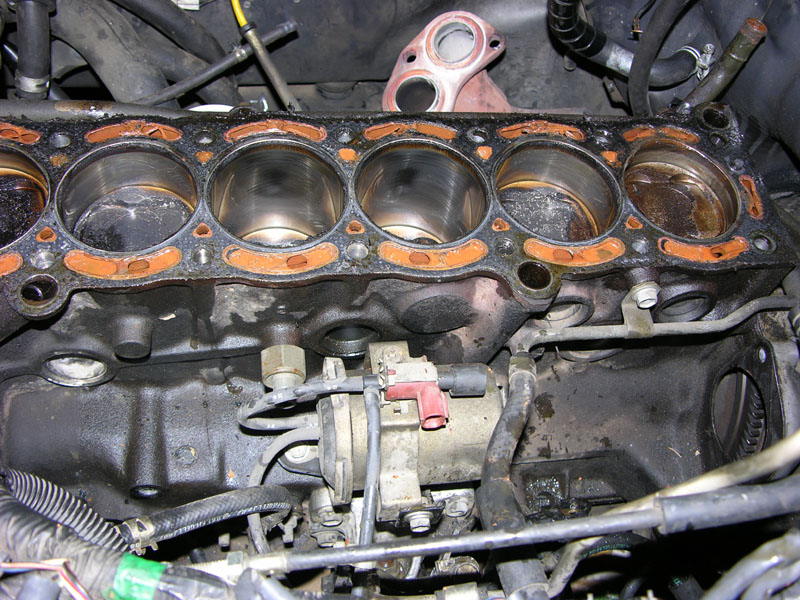

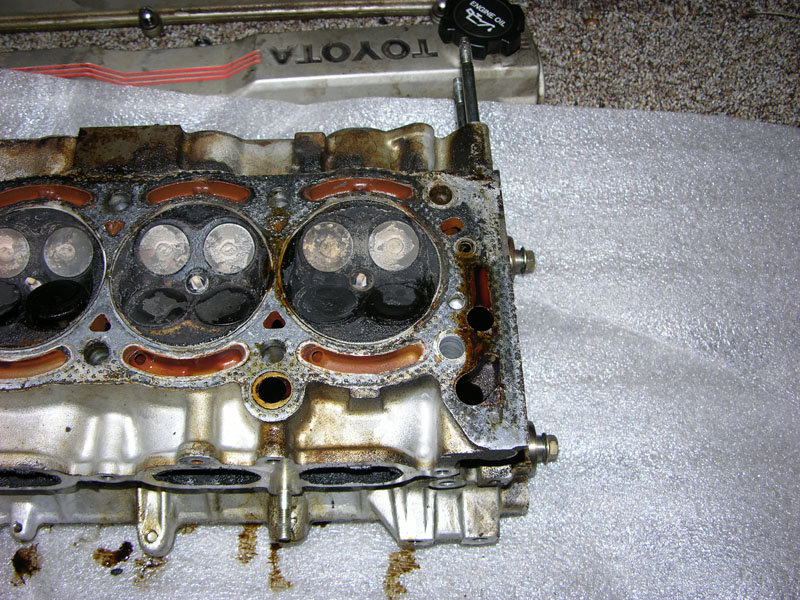

The Number 6 cylinder defiantly had a leak between the water ports and cylinder. The valves were reddish brown while all the other cylinders were whitish tan. The other cylinders were clean an shiny while number 6 has been burning water for a while. The head gasket has a significant oval shape extending to the water jacket – YUP BLOWN GASKET.

I was surprised to see how clean the other cylinders looked after 20 years. I will have the shop check out the block but looks like all it need is some cleaning an a hone to be good as new.

[oregonjoe]

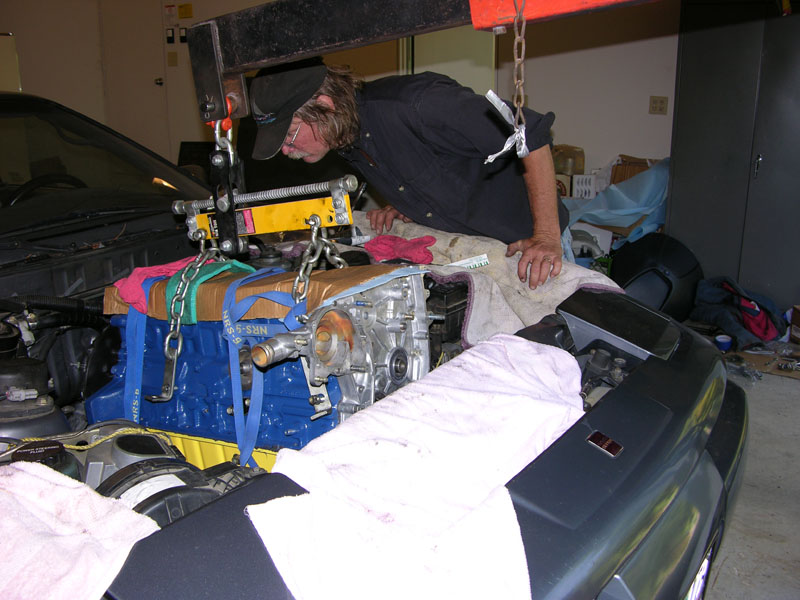

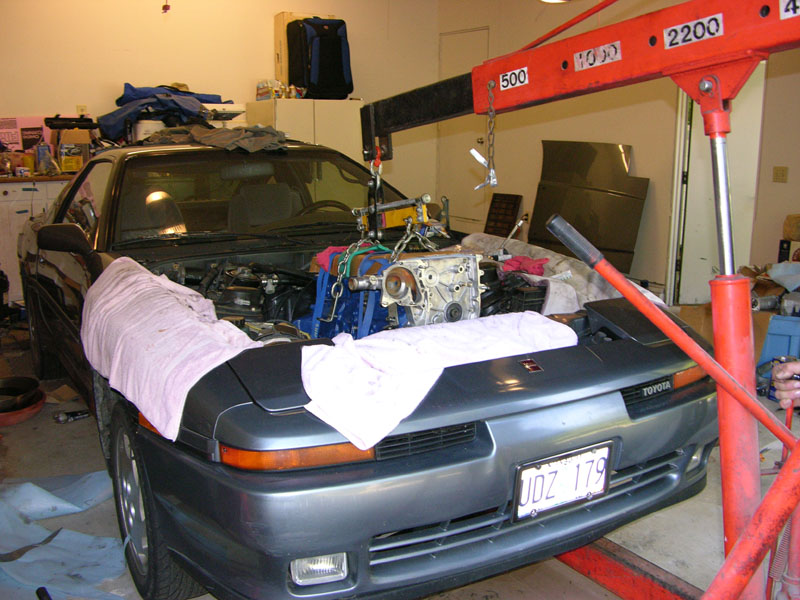

Well, since the block has to come out – in comes the hoist. I put a jack under the oil pan and transmission and unbolted the bell housing and engine mounts. I bolted the chains to the engine mount holes since I did not want to use the head bolt holes if one of them was already cracked. Balanced just fine and lifted right out by my self. This engine lift is a rally great tool you only get to use a few time in your life but it really works.

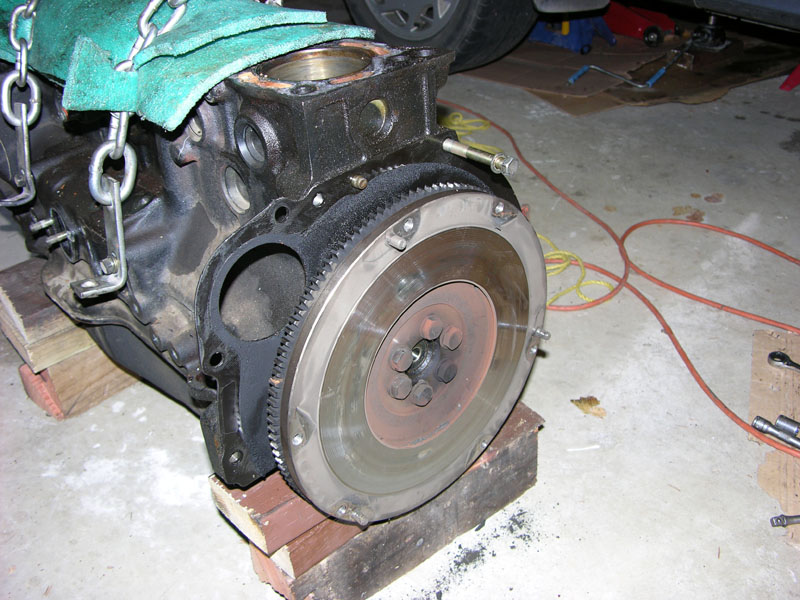

Now I get to look at the clutch and flywheel. Going to need some resurfacing and the clutch disk was worn to the bone – time to replace along with the throw out bearing and pilot bearing

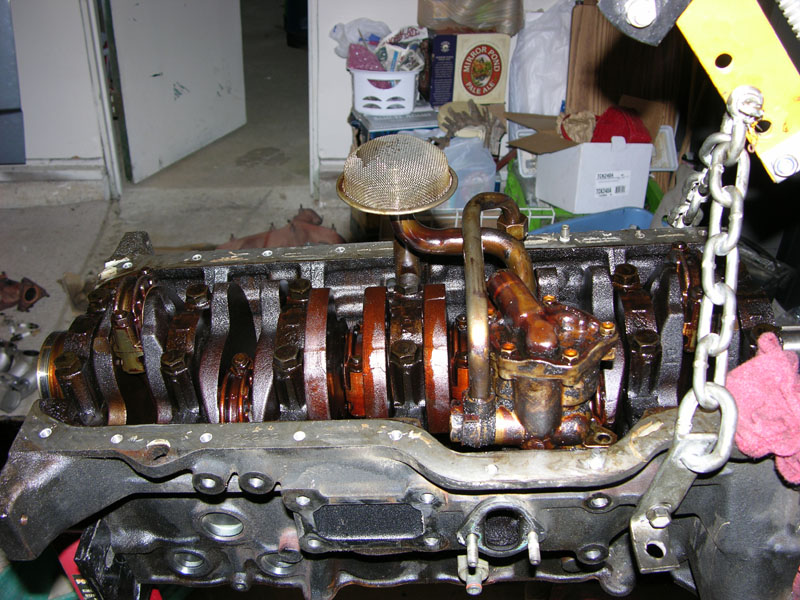

Got the engine on the stand and upside down to remove the oil pump. After unbolting one bolt it would not budge so I removed the pump drive shaft still not budge. Figured was a pressure fit so used a screw driver on the block to pry it off.

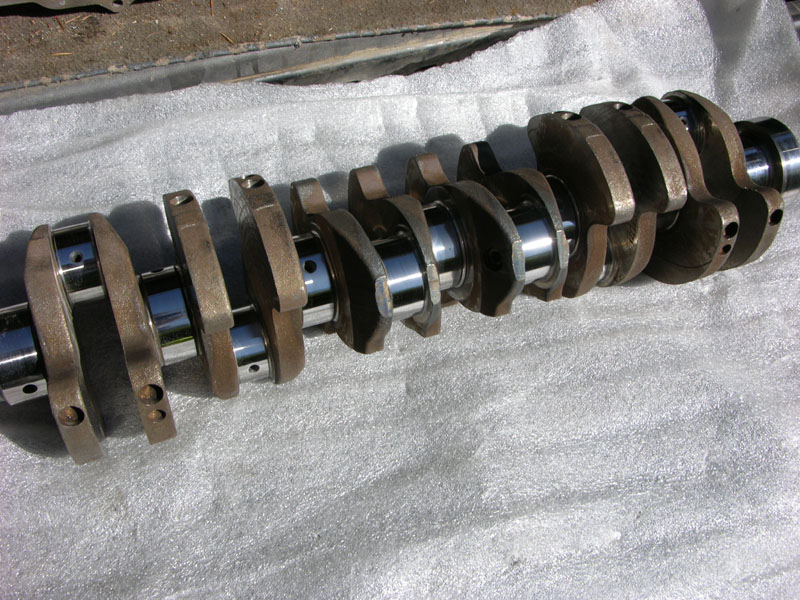

Next it was time to pop the pistons. The cylinders had no ridges so they came out really easy. Bagged each one in numbered bags. The rod bearings looked a little worn but were very even with no hat spots. The crank looked very good too so hopefully it can be reused. I am going to take it to the shop in the block to have them check tolerances and we will see what the verdict is on the head bolt hole crack and crank. Cross my fingers.



A week of nights and two cases later

[oregonjoe]

I’ve taken the head and block to the shop to have them cleaned up and inspected. The head and valves looked good for 20 years of use.

The good news on the block is no cracks after the magnetic test – so its just a hone on the cylinders and good to go. The bad news is the shop wants $500 to do a valve job on the head – even without replacing any valves. Claim the 24 valves takes a lot of labor and that OHC need to be ground to adjust!

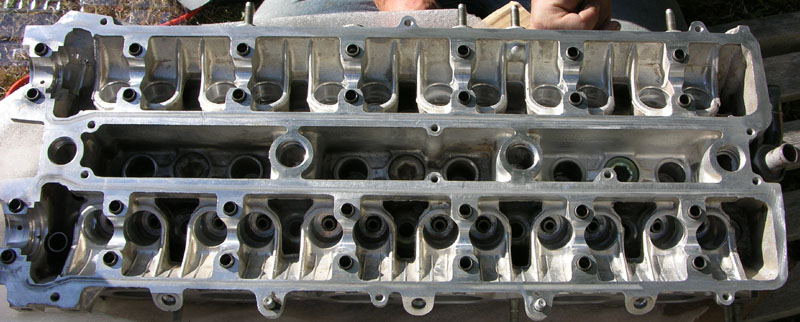

So – I took the head back to do a little porting and polish. The head had some casting marks and ridges from 20 years ago. Since I bought the car I have learned a thing or two about engines. One of which is that they are massed produced from casting molds. These molds are not all created equal and there can many flaws that are left as is in production. Some flaws include sharp ridges from casting seams and defects in the individual molds. Other are sharp angles from the machining process after the castings are poured. In production - they are all ignored.

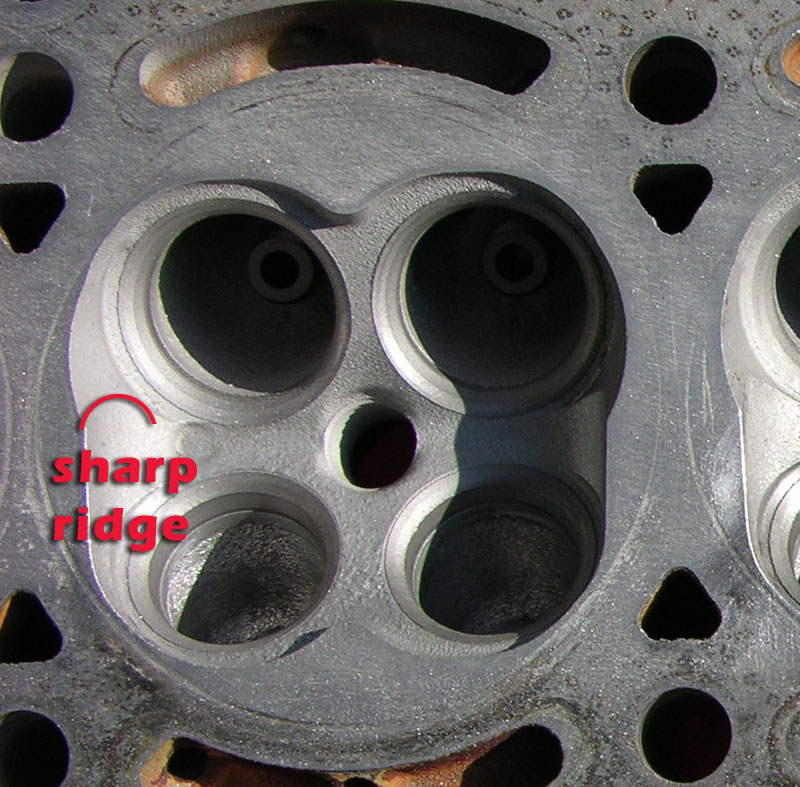

The cylinder chambers in the head have some sharp edges that can collect heat and cause preignition so I ground them off to smooth the transitions out the valve ports. Careful to not touch the valve seats.



I focused on the exhaust ports and smoothed out the walls and take out any burrs and casting ridges. Just a little touch up on the intake side to remove any large defects as I understand its better to leave the “sandpaper” effect on the walls.

[oregonjoe]

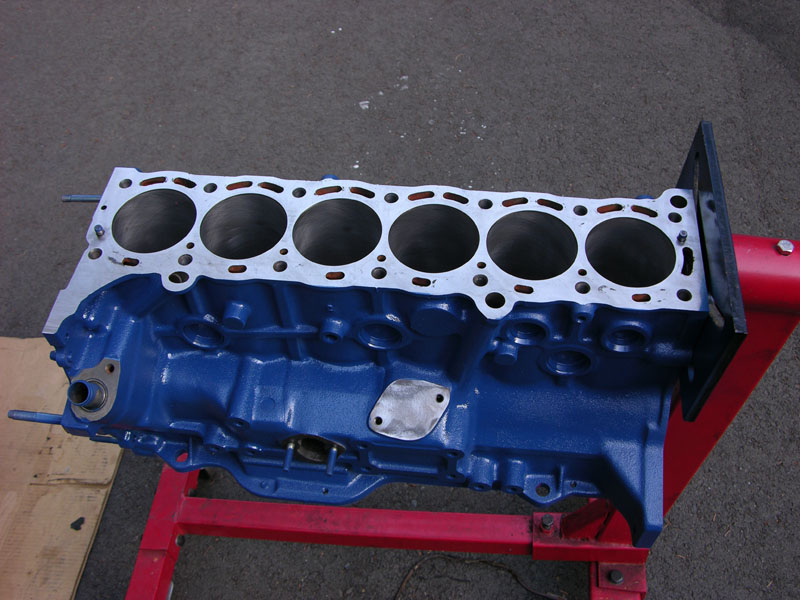

After a week in the machine shop – finally got my block back.



Tests showed no cracks so that’s good. The head gasket had been leaking water for some time so there was a lot of pitting around the water ports. The shop had to plane the block surface to remove most of the defects and prepare for the new gasket.

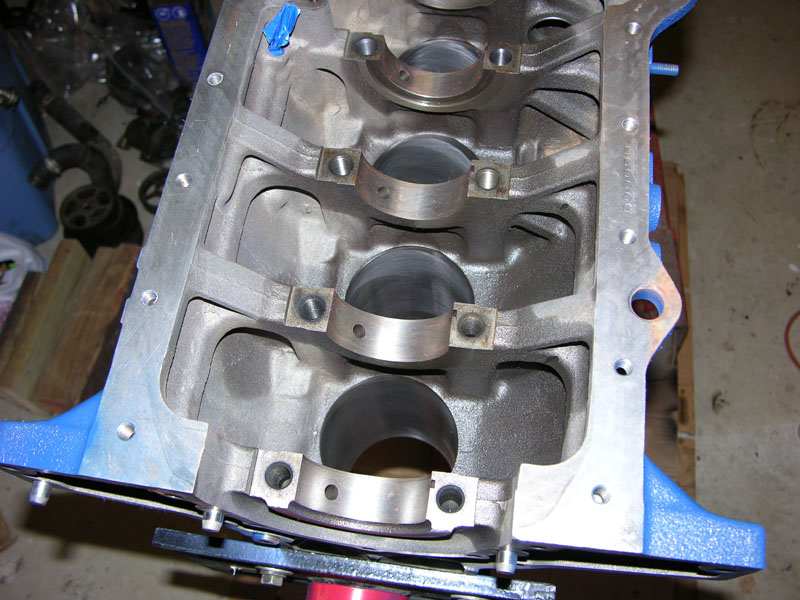

Cylinders only needed a hone to bring them back into shape.



While it was in the shop – I cleaned up the pistons and timing cover parts. The Crank Shaft just needed a little polish to restore as new so now I’m ready to start the rebuild on the block.



Ran into a problem with the oil pump drive shaft. There are two bearings in the block for the shaft that were left in when the block was tanked which of course destroyed the bearings. The problem is that they are really almost impossible to replace with the crank and pistons in place so now I have to wait till Monday to get new bearings before I can proceed. In the meantime I will check the oil clearance on the crank and rods with plastigauge.

O well, lesson learned – remove everything from the block and be sure you have all the bearings before reassembly.

[oregonjoe]

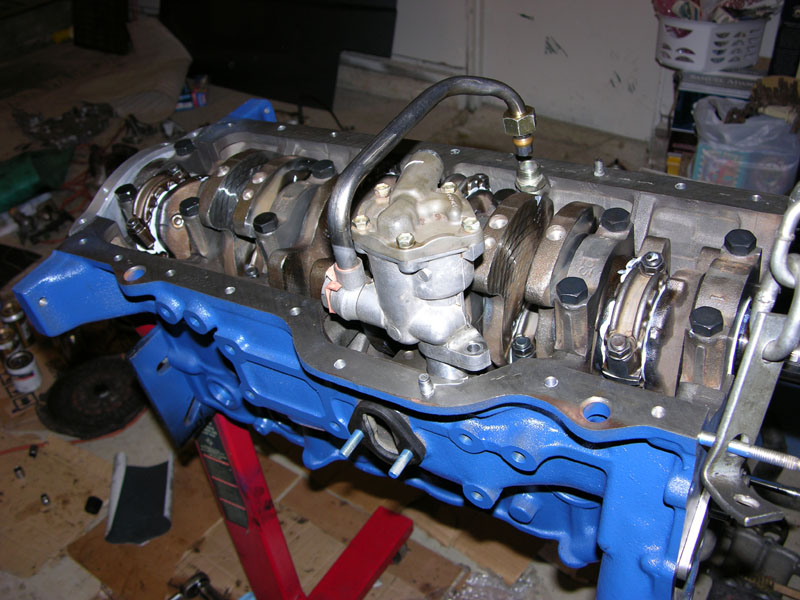

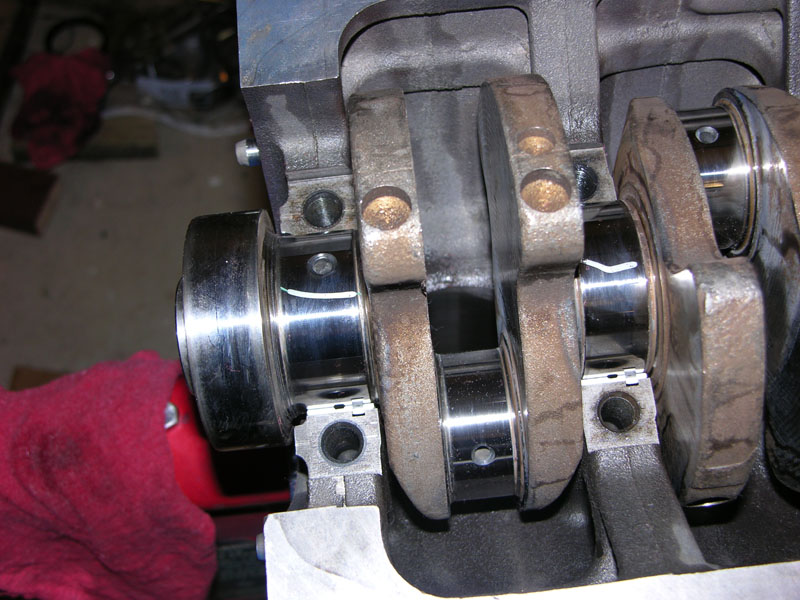

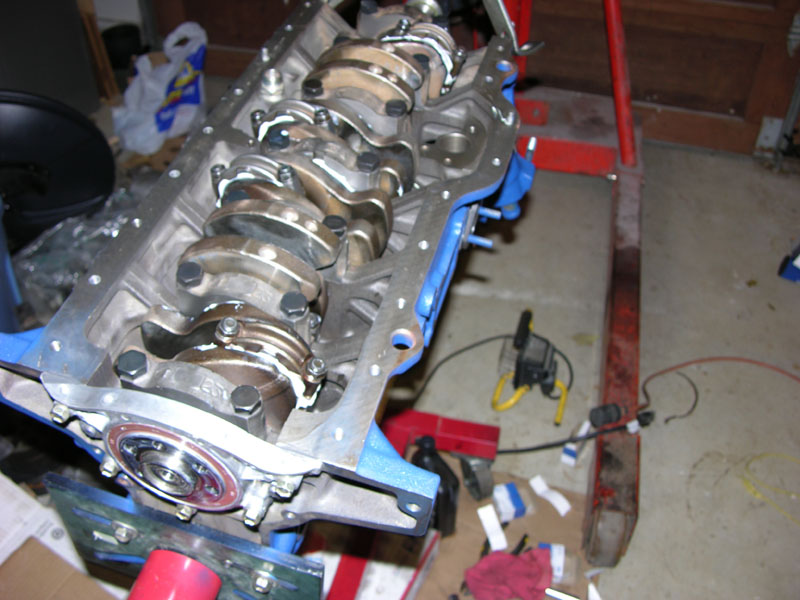

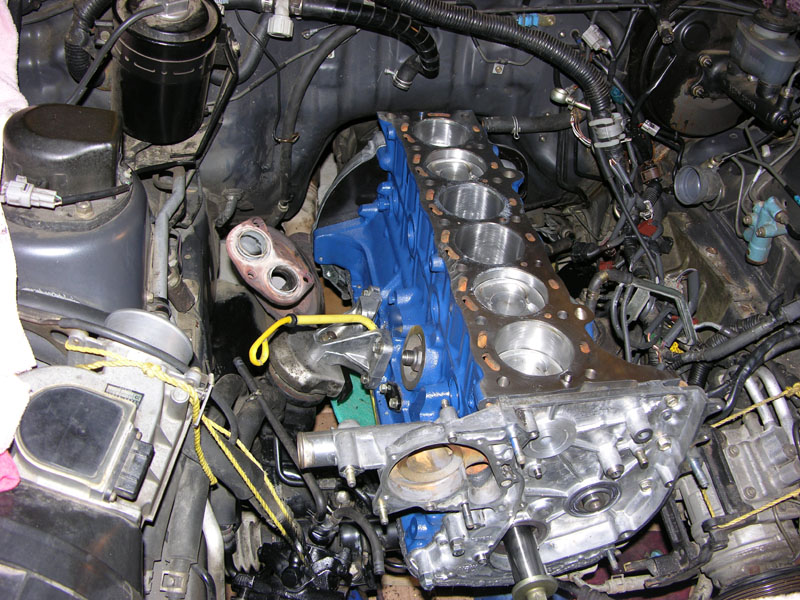

Assembled the crank and pistons into block. Laid the crank in on the new dry bearings and placed a piece of plasticgauge on the bearing face.



Torque the main caps to crush the gauge and then removed the caps. Check tolerance was OK (0.022) then cleaned and reassembled again.



Takes awhile to do it twice but felt better to know everything was in spec after 20 years. After the crank was bolted in the second time, it spun with very little effort – smooth as silk with all that assembly lube.

Next it was the pistons. Cleaned till new and disassembled and cleaned the writ pins. Reassembled the rods to pistons being sure all the little oil holes in the pistons were clean. Placed the rings on the pistons after checking ring end gap in cylinder bores. Amazed how much easier the rings go on then come off. After they are in the engine for awhile they get very brittle and just break. Performed same plasticgauge check on rod bearings as crank. Assembled pistons into ring compressor and pushed into cylinder from below (block was inverted on engine stand). Used some old fuel line tubing over the rod bolts which works really well because if you cut them about 3” long, they actually guide the rod onto the crank. All the pistons tapped in very easy.



After pistons were installed with no problems, tried to give crank a spin and found it wasn’t easy. Using a torque wrench, I had to set it to 15 pounds to break the inertia and get the crank to move. Not nearly the same as when the engine was broken in. I know its going to take some time for the pistons to seat and for things to loosen up but wonder if 15 pounds is spec. I just think about all those new engines rolling off the production lines everyday with just a few hours of break in time. A lot of extra gas being wasted in the first 500 miles.

I cleaned the oil pump till it looked like new and gave it a test in a bucket of oil. Inserted the oil pump drive shaft and pressed in the pump.



Still waiting for head and clutch to arrive so all I can do now is clean parts. The biggest cleaning job is the intake manifolds as they are clogged with residue from the smog stuff. PVC and EGT just destroy all the air passages. The throttle body took 2 days to soak off the layer of tar. Sure will be nice to get this engine to breathe again.

[oregonjoe]

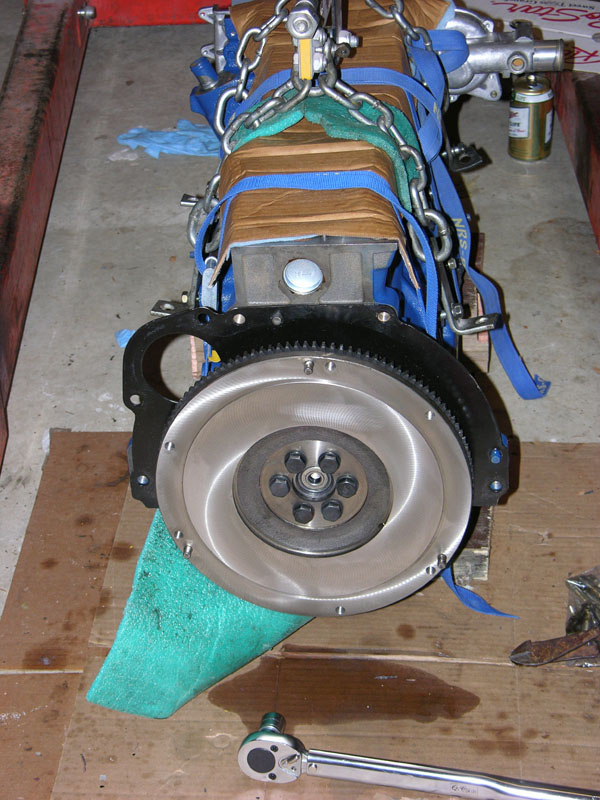

Picked up clutch. $200 for pressure plate, disk, throw out bearing, pilot bearing, and alignment tool. Had the old flywheel resurfaced by the shop.



Forgot to pull out old pilot bearing on the crank before the shop work was done so I had to pull it myself but did not have a tool. Remembered an old technique for years past – packed the pilot hole with grease and used a 3/8” socket extension and hammered into hole. The hydraulic pressure of the grease from behind pushed out the bearing. Took 4 hits with grease repack but it came out pretty smooth. Put new bearing in with a ?” socket just tapping on the edge of the bearing.

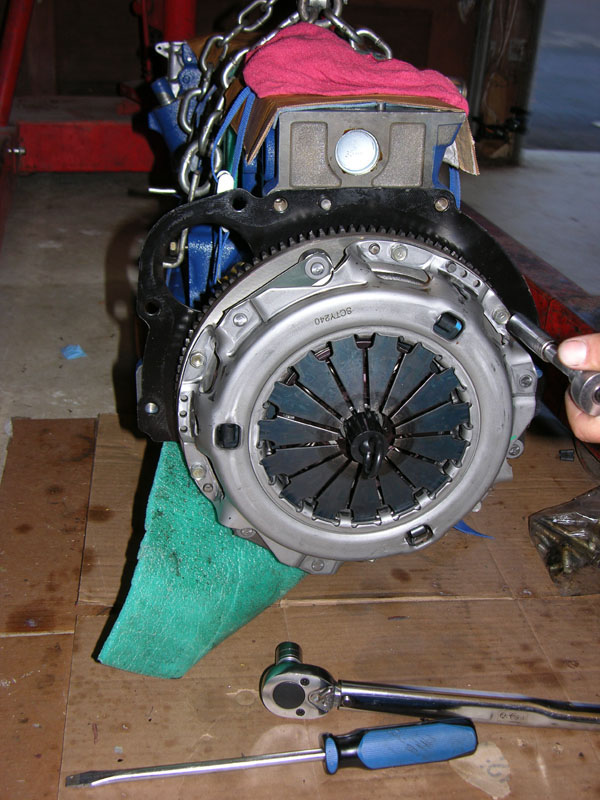

Mounted the new clutch and aligned the disk with the tool. The book says to torque the clutch pressure plate to 15 pounds but that seemed kind of low. I thread sealed the flywheel and clutch bolts anyway.

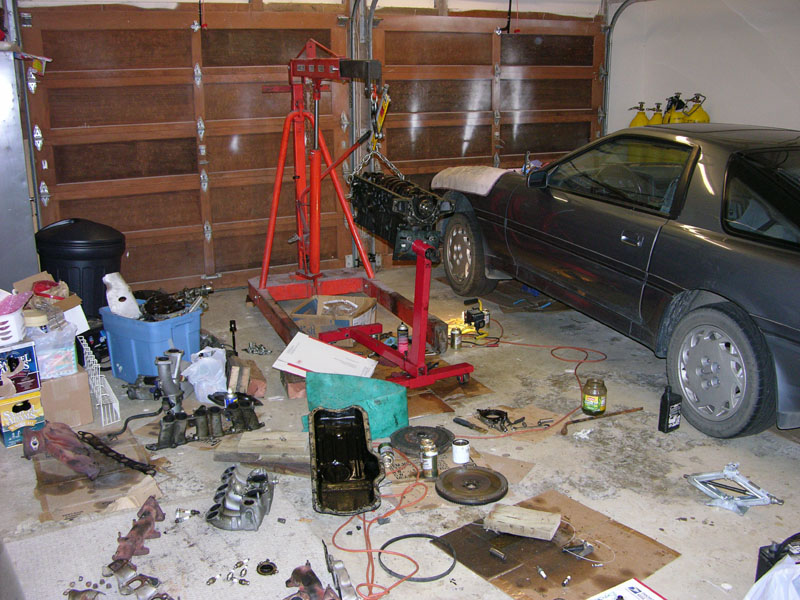

Now it was time to chain up the block and lift it back into the car. I am dong the block with out the head because it’s easier to move around and get in a do the bell housing bolts without the head on. I was concerned about alignment with the transmission shaft as it seemed real easy to snap it off if things were not aligned right when lifting the block back in.



Now – a few things I learned. First, put the two top bell housing bolts in before doing anything. I found it impossible to get them in after the transmission was jacked up to the firewall which you need to do to get the right angle to join with the block. Second, jack up the transmission all the way to the firewall to get a better angle. When you lift the block in, the front of the engine is about 30 degrees up from the rear so the oil pan can clear the lower support beams. Here is the important part – unbolt the clutch slave cylinder from the bell housing so the clutch fork is able to completely retract. It took me almost 2 hours in trying to match the block and transmission and not getting them together until I realized the clutch fork/throwout bearing was trying to engage the pressure plate that no mere human can push against. Disconnecting the slave cylinder allowed the clutch to slide in over the shaft with no pressure – SIMPLE.



When I removed the engine, I unbolted the two support mounts from the block and not the frame – it was just easier due the angle of the frame bolts. On reassembly I bolted the transmission on before attaching the engine mounts – bad idea. It is impossible to put the mounts back on after the engine is set in unless you undo the frame bolts from below which I was trying to avoid in order to not mess with the alignment. In hind sight I should have placed the engine mounts on the frame before lifting in the engine. Oh well – it only took another half hour under the vehicle to fix this.



A side note – After the block was in and the engine mounts tightened (total of 4 hours) I put a socket on the crank shaft and turned the engine to see if there was no binding and that the transmission and clutch were all still working After a few cranks I heard a loud POP! OH NO! sounded like I had just snapped something off. Im thinking something in the transmission?, Crank?, Piston? Anyway, just like anyone else, since I can’t figure out what it was – I just do it again! A few more cranks and again the loud POP. This time I notice the protective covering I had on the block deck to keep it clean was pushing out like a big balloon. Seems I had it strapped in tight enough that it created a seal so when the piston pushed up – it blew it out with a nice pop. Good news is that the engine works!

Now I get to go under and finish bolting in the bell housing and stiffeners
