Default Ignition / Wire Harness Question

Hey,

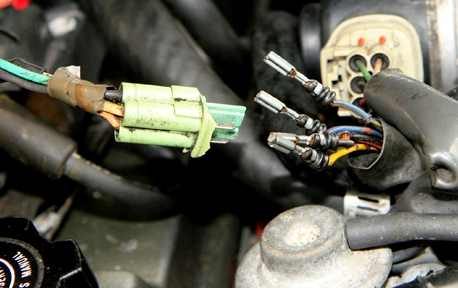

I've been search and reading the TSRM to figure this out but I'm unable to. Can anyone help me with this? This is my 88 turbo auto. In the picture its my ignition coil wire that attaches to the harness, now unfortunately for me the connectors on the harness is broken and I can’t figure it out.

Thank you
Attached Thumbnails
Click image for larger version

Name:	_MG_7571 cam sensor pic-2.jpg
Views:	345
Size:	104.3 KB
ID:	985
kidsusukigsxr is offline   Reply With Quote
Old 07-10-2007, 09:29 PM   #2
IHateHacks
20psi boost

IHateHacks's Avatar

Join Date: May 2006
Location: New Haven/Hamden
Posts: 793
IHateHacks is on a distinguished road
Default

The green goes to the yellow. The black goes to the red w/ blue strip, but in your pic yours looks like a blue w/red strip. Ok now the other 2 are tricky. One looks more yellow than the other, one looks kinda pinkish. So the yellow goes to the blue w/yellow strip and the pink goes to the black w/red strip.
IHateHacks is offline   Reply With Quote
Old 07-11-2007, 12:57 PM   #3
suprascoot
Stock

Join Date: Jul 2007
Location: tennessee
Posts: 12
suprascoot is on a distinguished road
Default

Ok, i just looked at my 89 turbo and here are the wire descriptions from top left clockwise
black - blue/red
white - blue/yellow
peach - black/red
green - yellow

you might want to wrap up that small break in your insulation on the blue/yellow wire with some electrical tape just to be safe
